Please give Wall Measurements and Angles.
Do not make deductions or additions for Brackets.

Bend Information







Eyelet Rods and Full Ring Rods will not be supplied bent

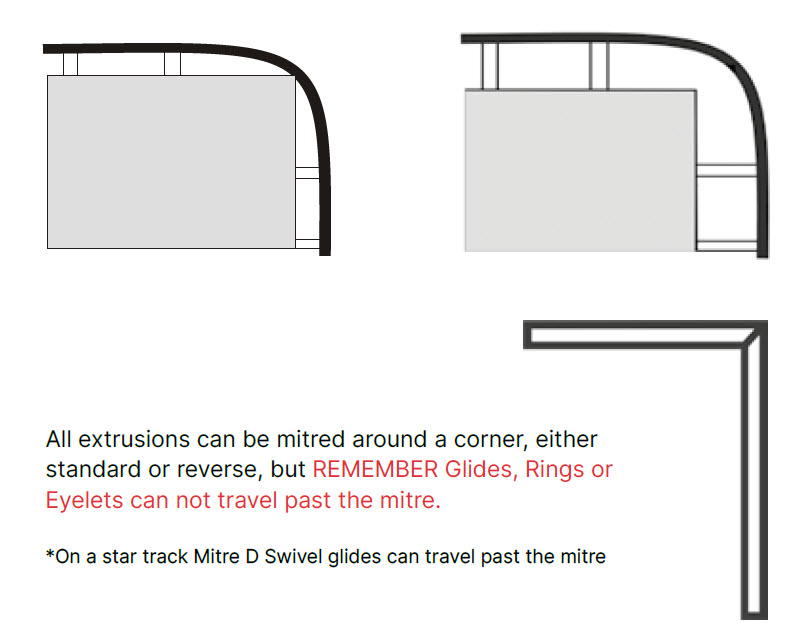

Bends / Mitres / Corners

Mitred corners will be charged at $50.00 per corner, per single installation, $100 per corner for double tracks.

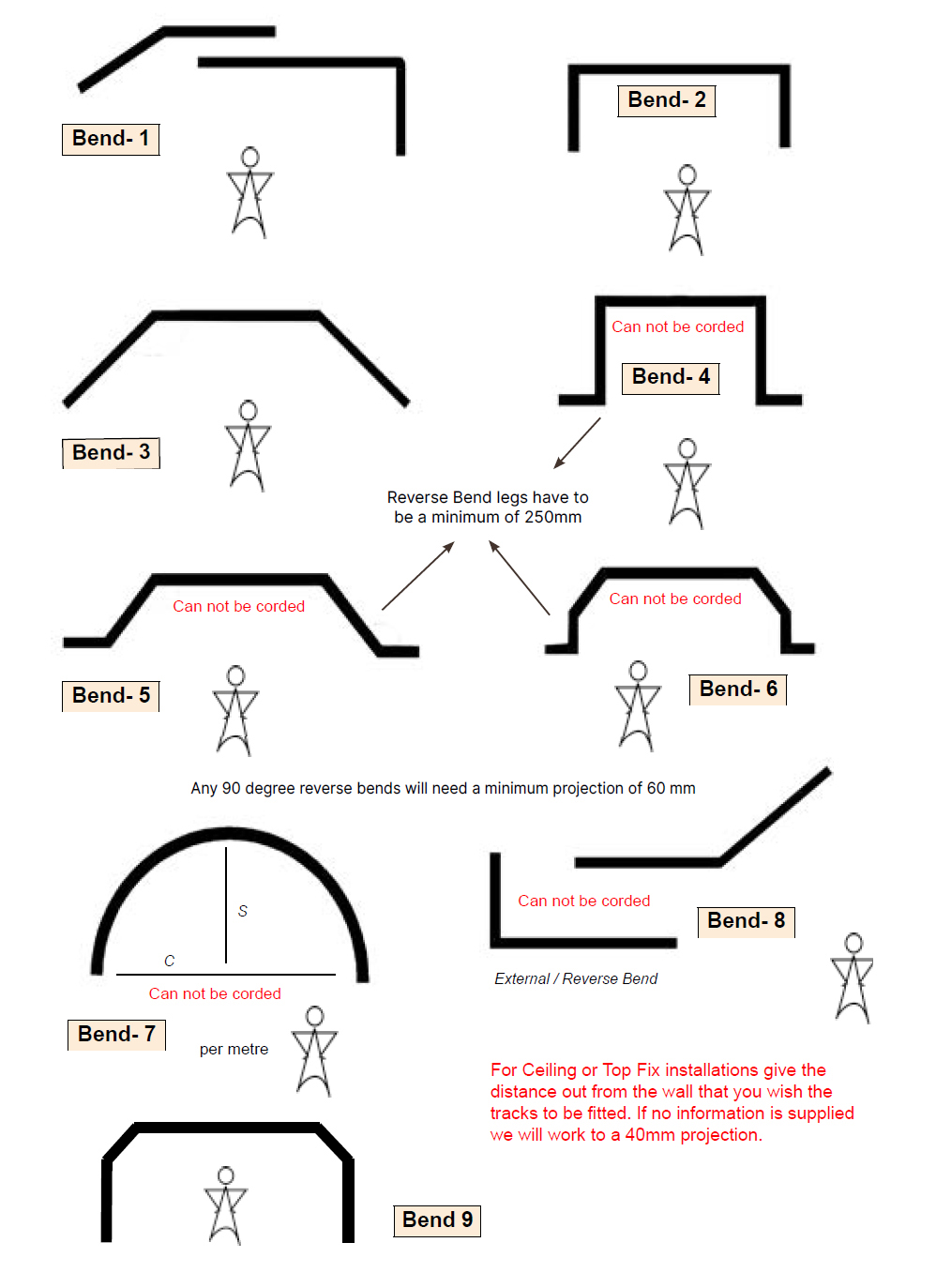

Bends are charged per track so a Bend1 on a Double installation eg. set 9 would be $32.00 for the front track + $32.00 for the back track

Reverse bends:

May require longer Brackets so that rod, track and drapes will clear the wall - see pics.

Bend Information

Cord drawn curtains on bent or curved tracks will be more difficult to operate: The friction of the cords on the aluminium as they pass around a bend or against the full length of a curve can a have a significant effect.

For this reason we advise against cording on anything but straight tracks. At the very least, end users should be advised that operating the curtain will require more effort and the control end will require very secure fixing for the Brackets.

Drape widths when fitting to Bent Rods or Tracks

Except in the case of reverse bends the total length of the Rod or Track will be shorter than the wall measurement. Curtain makers may wish to compensate for this by reducing the finished width of drapes. This is espcially useful when using inverted pleat headings that need to sit flat when the curtain is drawn, or when there is not a great deal of room to stack the opened curtain off the window.

The following are “rule of thumb” measurements for calculating how much less curtain width would be needed for different bracket sizes and bend angles.

These measurements are appropriate to Track Magic bend formers and may not be relevant to other brands.



Wave Pleat Hook Count Chart
Length
(mm)		 Centre
Opening		 One Way
Draw		 Length
(mm)		 Centre
Opening		 One Way
Draw		 Length
(mm)		 Centre
Opening		 One Way
Draw
No of
Glides		 No of
Glides		 No of
Glides		 No of
Glides		 No of
Glides		 No of
Glides
1000 20 18 3050 56 52 5100 88 86
1050 20 20 3100 56 54 5150 92 88
1100 24 20 3150 56 54 5200 92 88
1150 24 22 3200 56 56 5250 92 90
1200 24 22 3250 60 56 5300 92 90
1250 24 22 3300 60 56 5350 92 92
1300 24 24 3350 60 56 5400 92 92
1350 28 24 3400 60 58 5450 96 94
1400 28 26 3450 60 60 5500 96 94
1450 28 26 3500 64 60 5550 96 94
1500 28 26 3550 64 62 5600 96 96
1550 28 28 3600 64 62 5650 100 96
1600 32 28 3650 64 62 5700 100 96
1650 32 30 3700 64 64 5750 100 98
1700 32 30 3750 68 64 5800 100 98
1750 32 30 3800 68 66 5850 100 100
1800 32 32 3850 68 66 5900 104 100
1850 36 32 3900 68 66 5950 104 102
1900 36 34 3950 72 68 6000 104 102
1950 36 34 4000 72 68 6050 104 104
2000 36 36 4050 72 70 6100 104 104
2050 40 36 4100 72 70 6150 108 106
2100 40 36 4150 72 72 6200 108 106
2150 40 38 4200 72 72 6250 108 108
2200 40 38 4250 76 72 6300 108 108
2250 40 40 4300 76 74 6350 108 110
2300 44 40 4350 76 74 6400 112 110
2350 44 42 4400 76 76 6450 112 112
2400 44 42 4450 80 76 6500 112 112
2450 44 42 4500 80 76
2500 44 44 4550 80 78
2550 48 44 4600 80 78
2600 48 46 4650 80 80
2650 48 46 4700 84 80
2700 48 46 4750 84 82
2750 48 48 4800 84 82
2800 52 48 4850 84 82
2850 52 50 4900 88 84
2900 52 50 4950 88 84
2950 52 52 5000 88 86
3000 52 52 5050 88 86
