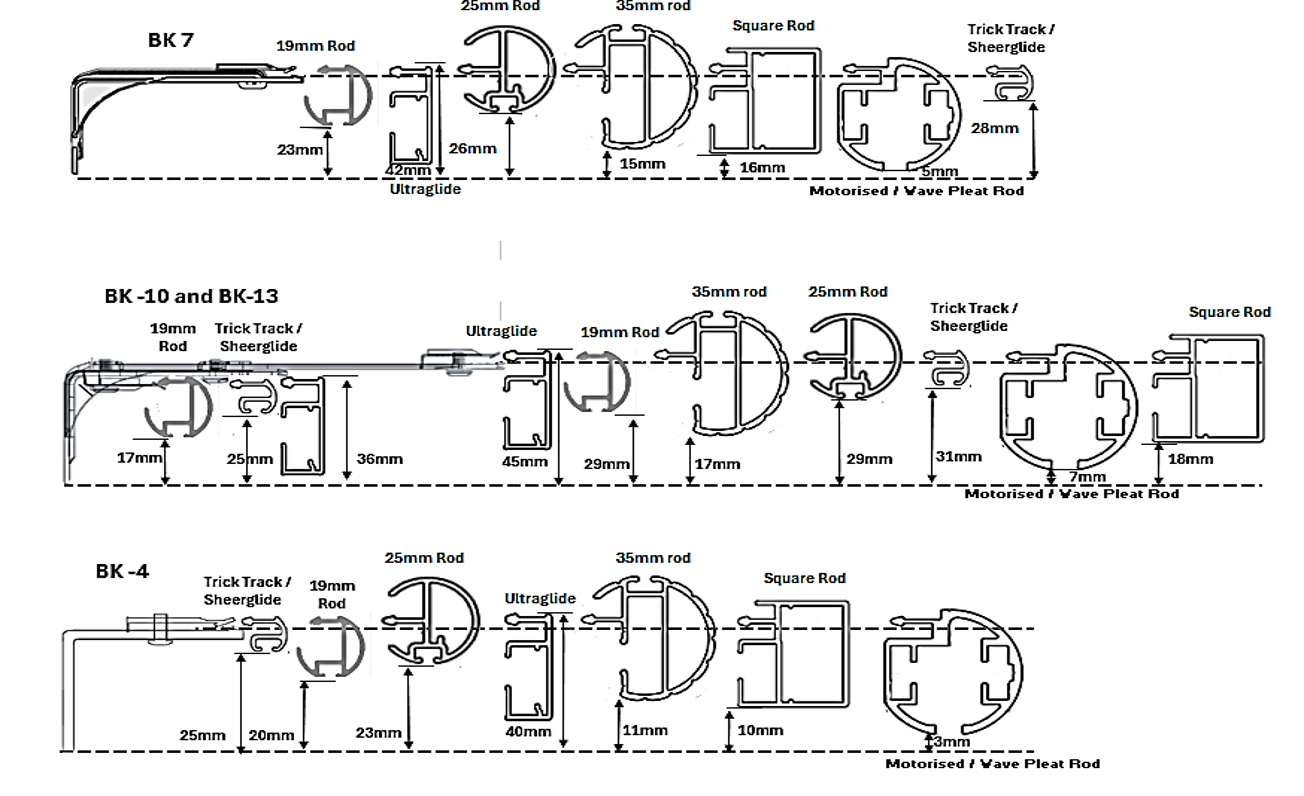

| DIMENSIONS | ||
|---|---|---|
| Top of track to bottom of Glide Loop | 30mm | |
| Bottom of FF bracket to bottom of Glide Loop(excludes bracket cover) | 6mm | |
| FF Bracket projection to front of track - minimum | 60mm | |
| FF Bracket projection to front of track - maximum | 66mm | |
| Bracket Footprint (excl cover) | Width | 25mm |
| Height | 35mm |

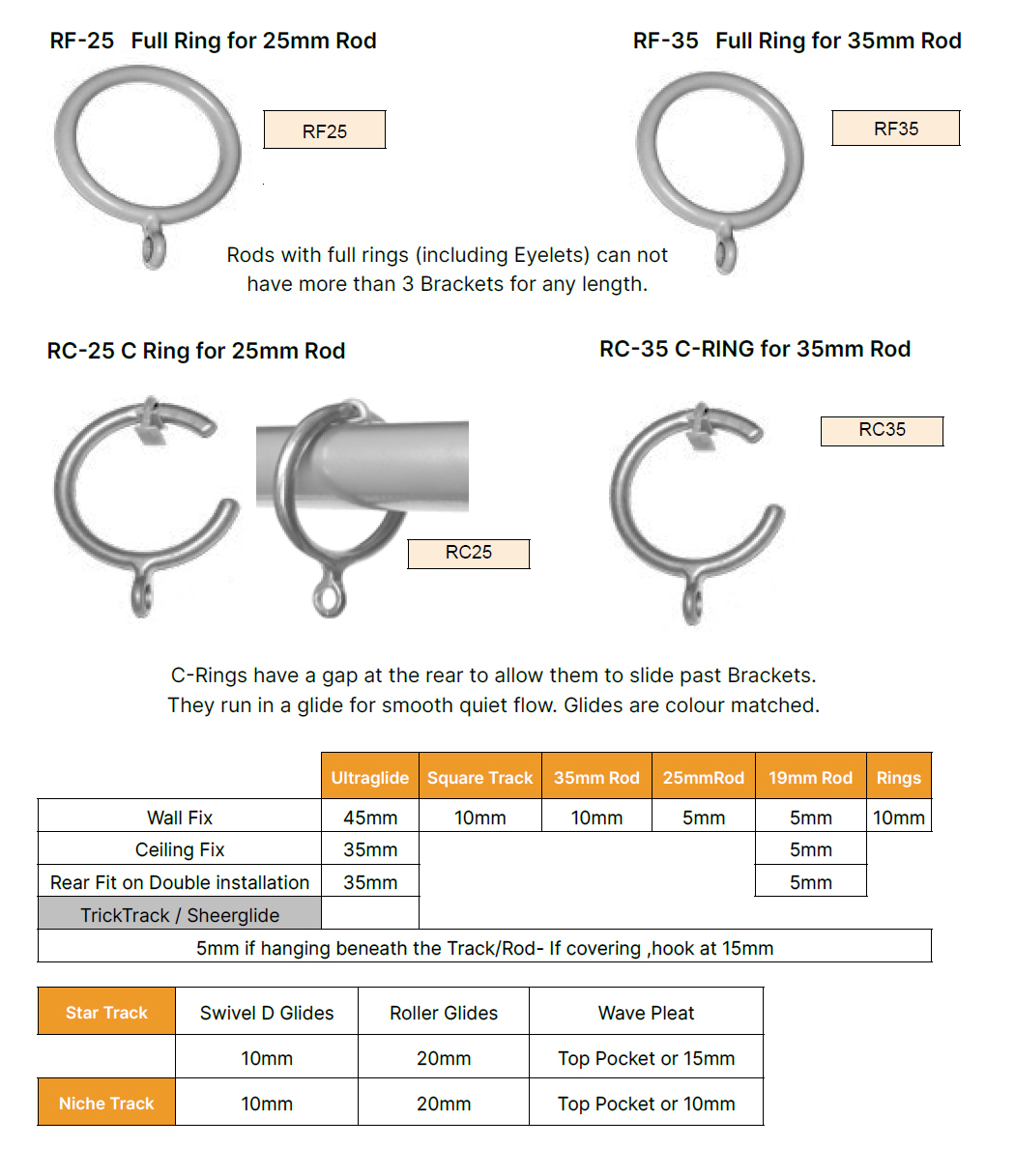

Curtains hung from Rods must be hooked so that the top of the curtain is clear of the rod.
This is especially important with tape headings and/or with textured finishes, as any contact between fabric and rod will cause friction and impair the easy operation of the drapes.
All Matisse® glides are colour matched to rods and tracks so that they can blend away and not be obvious in the small clearance between rod and drape.
