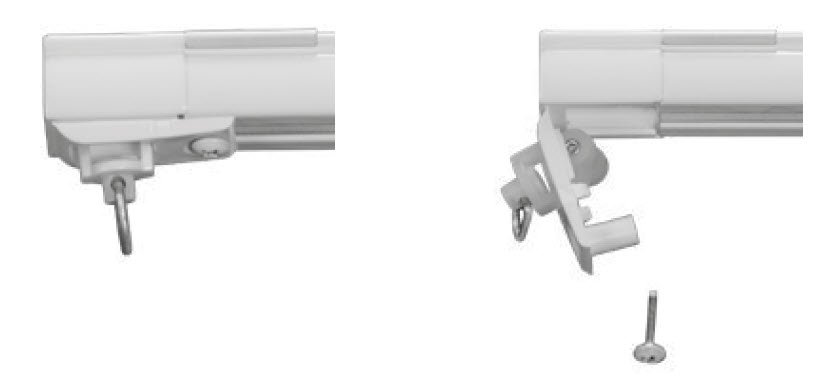

Glides may be added or removed after installation. (Useful when installations are wall to wall)

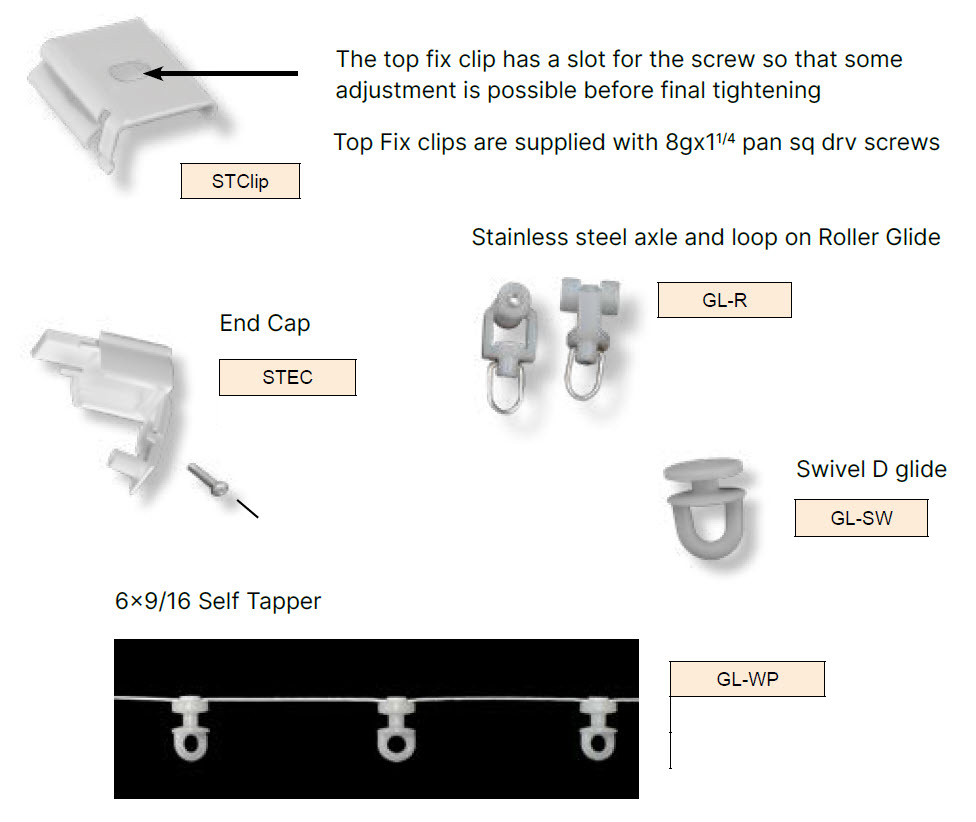

Unscrew the 6x9/16 self tapper screw securing the end cap gate, open the gate to add or remove glides then snap closed and re-secure with the screw. Use a hand held screwdriver, DO NOT overtighten the screw - you will strip the thread.

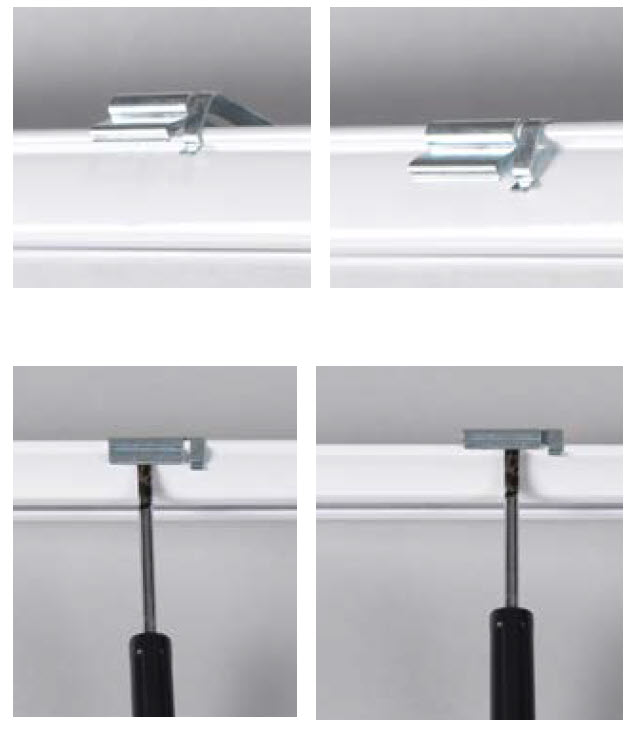

Two position clip:
Position 1 allows the track to slide back and forth for centering. Push track up to position 2 to secure the track in place. Release again to position 1 by inserting and twisting a thin flat blade screwdriver.
Note:
For the sake of visibility Clips used for this illustration are zinc plated. Clips are supplied colour matched to track

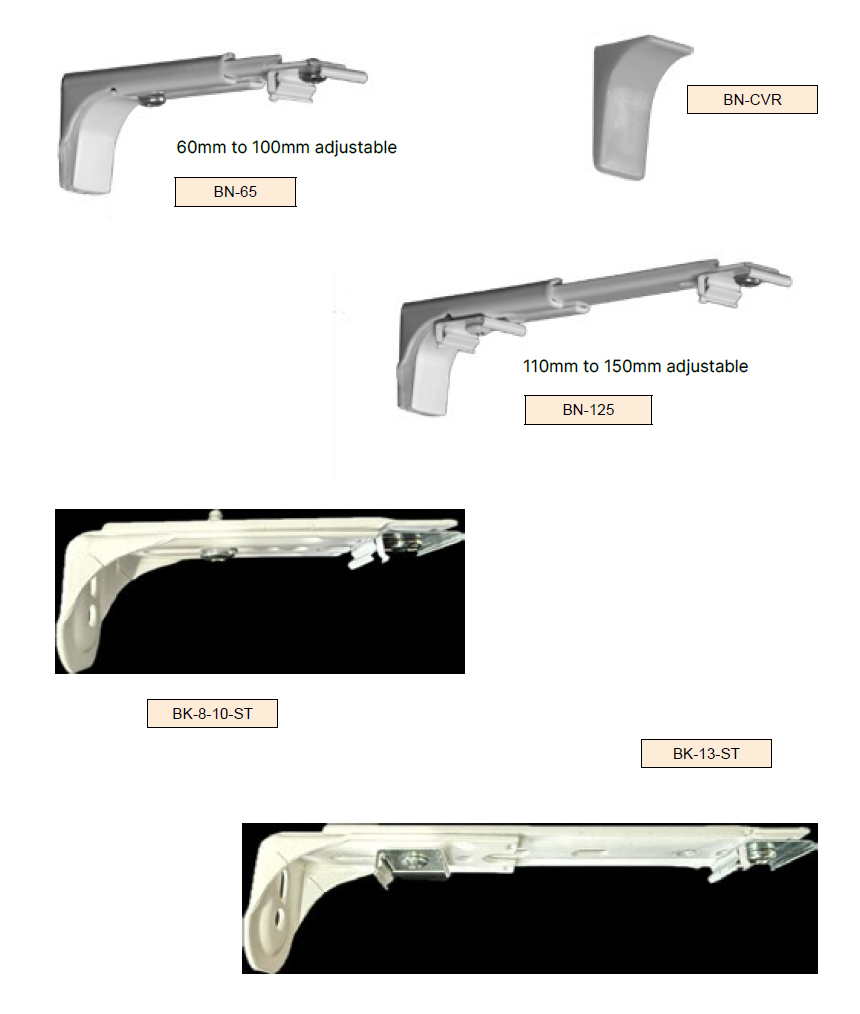

Measurements are from wall to rear of Track
Note: Star Track Can Not be cord drawn.

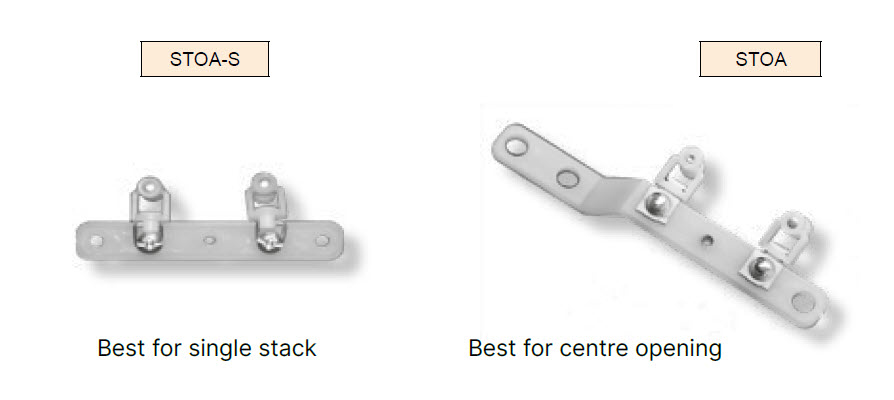

Overlap arms are only to provide better curtain closure.
Overlap Arms are an optional extra. Please specify if required.
